Overview

Nanobase Single-Photon Timing Module provides high-precision single-photon timing and time-resolved detection, enabling researchers to surpass conventional fluorescence imaging and gain deeper insights into the functional and dynamic behavior of their systems.

System Configuration

FILM upgrade module (1).png

Single-Photon Timing Module(2_1).png

Why NANOBASE Single-Photon Timing Module?

Developed as an advanced extension of the XperRAM-S series, the Single-Photon Timing Module expands the capabilities of Raman spectroscopy into time-resolved fluorescence analysis. By integrating proprietary confocal laser scanning technology, the module enables precise single-photon timing measurements at localized regions and supports high-resolution mapping of time-resolved fluorescence dynamics.

System Performance

5x speed

5x speed

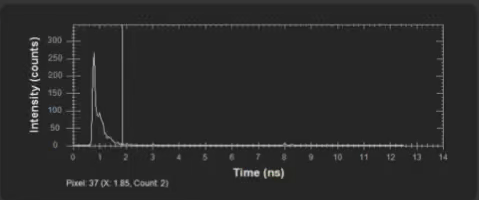

Time-Resolved Photoluminescence Curve

FILM upgrade module (3).png

Photon Count Image #1

Photon Count Image #2

FILM upgrade module (4).png

At NANOBASE, we offer the Single-Photon Timing Module to seamlessly enhance the XperRAM-S series with advanced time-resolved fluorescence measurement capabilities.

Mapping data can be exported in PTU format and analyzed using PicoQuant SymPhoTime 64 software for Fluorescence Lifetime Imaging Microscopy (FLIM) image reconstruction and fluorescence lifetime analysis.

Picoquant SymPhoTime 64

Please contact our technical sales team for consultation on integrating the module into your experimental setup.
