Cooling & Heating Stage
Nanobase Raman microscope spectrometers can be expanded with various options to broaden research capabilities. Among them, the Cooling/Heating Stage enables precise temperature control from cryogenic to high-temperature conditions, opening new opportunities for researchers in materials science, chemistry, and energy fields. By combining temperature-dependent control with Raman spectroscopy, you can investigate the correlation between Raman spectra and electrical/optical properties of samples such as semiconductors, catalysts, polymers, and battery materials.

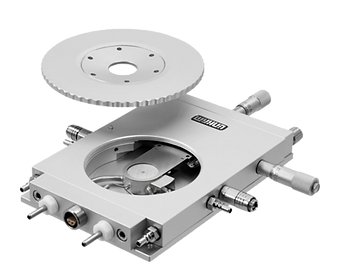

THMS600
• Temperature Range: -195 °C to 600 °C (Cooling option required)
• Heating up to 150 °C/min, cooling up to 100 °C/min (with LNP96)
• ±0.01 °C temperature stability for reliable measurements
• 22 mm diameter sample area with 16 mm XY movement
• 2.0 mm aperture and 4.8 mm objective lens working distance
Linkam Scientific Instruments THMS600 (View Details)
HFS600E-PB4
• 4 X BNC screw fit fittings and 4 probes
• Temperature range < -195°C to 600°C (cooling option required)
• Rapid Response: Heating up to 150°C/min
• Temperature stability: <0.01°C• 22mm x 0.5mm quartz window
• Objective lens working distance 4.9mm
Linkam Scientific Instruments HFS600E-PB4 (View Details)
.png)
.png)
Nanobase partners with Linkam to provide advanced temperature-controlled stages that broaden the possibilities of Raman research and industrial applications. For tailored experimental solutions, please contact our technical sales team.
